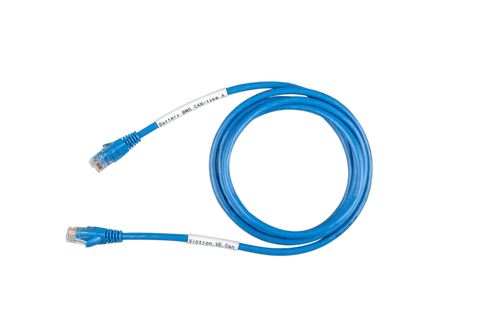

Victron VE.Can to CAN-bus Battery BMS type A Cable 5m
Use this cable to connect a CAN-bus enabled battery, not from Victron, to a Victron system. Type A Cable
VE.Can to CAN-bus BMS type A Cable
- BYD B-Box
- Pylontech US2000C/US3000C/UP5000/Force-L
Installation
The side labeled 'CAN-bus BMS' plugs into the battery. The other side, labeled 'VE.Can' must be plugged into either the VE.Can port of the GX device, or the BMS-Can port.
Both port types (VE.Can and BMS-Can) on a GX Device can be configured for use with a CAN-bus BMS connected third party battery.
For configuration, see the manual specific to the brand of battery you are using.
Pin-out
In some cases it might be needed to make the cable at the location. Find below the pin-outs. Make sure to very carefully test the cable after crimping it. Self-made cables are very often the causes of very hard to diagnose problems.
Type A
| Function | Victron VE.Can side | Battery side |
|---|---|---|
| GND | Pin 3 | Pin 6 |
| CAN-L | Pin 8 | Pin 5 |
| CAN-H | Pin 7 | Pin 4 |
-
