• Description

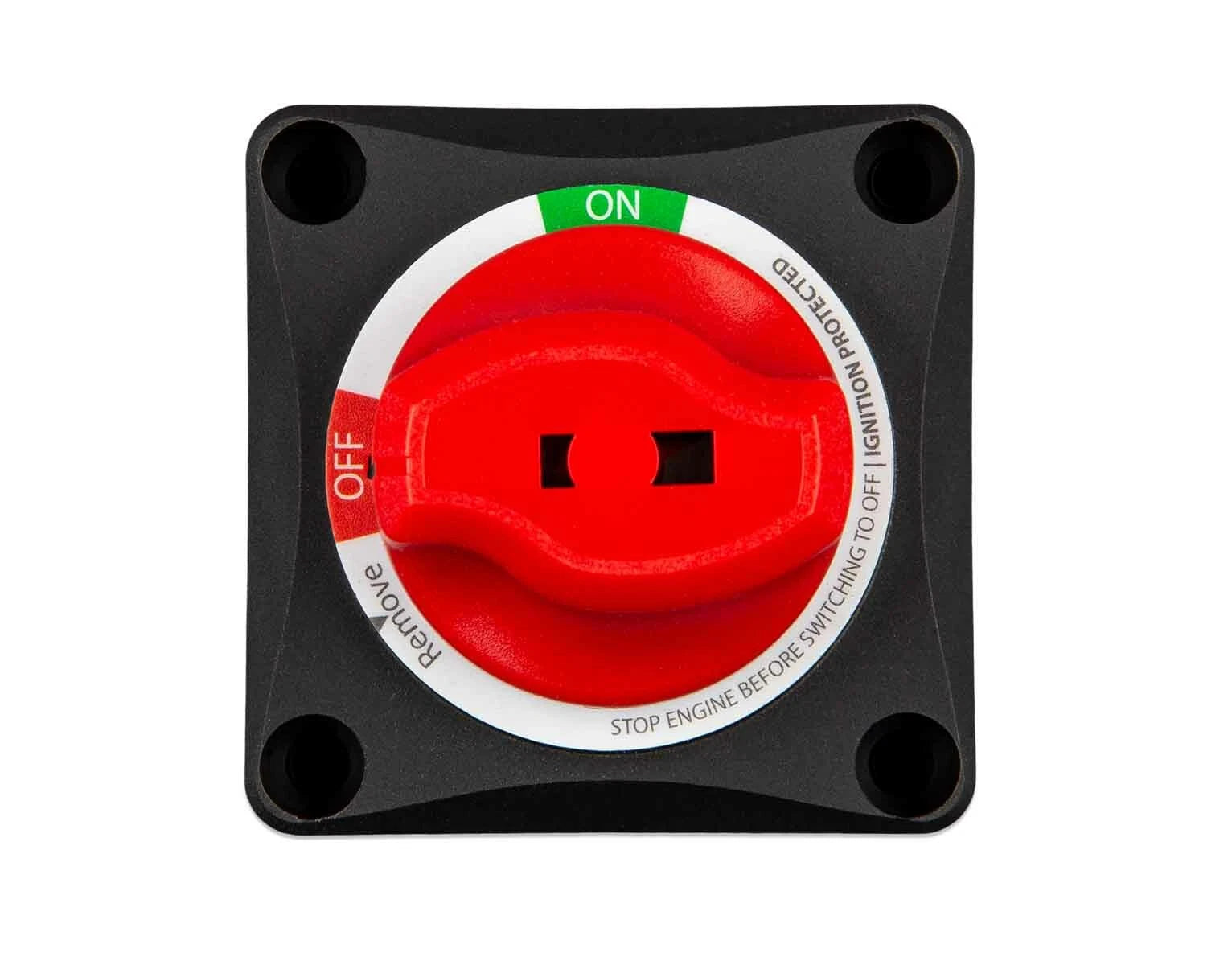

The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.

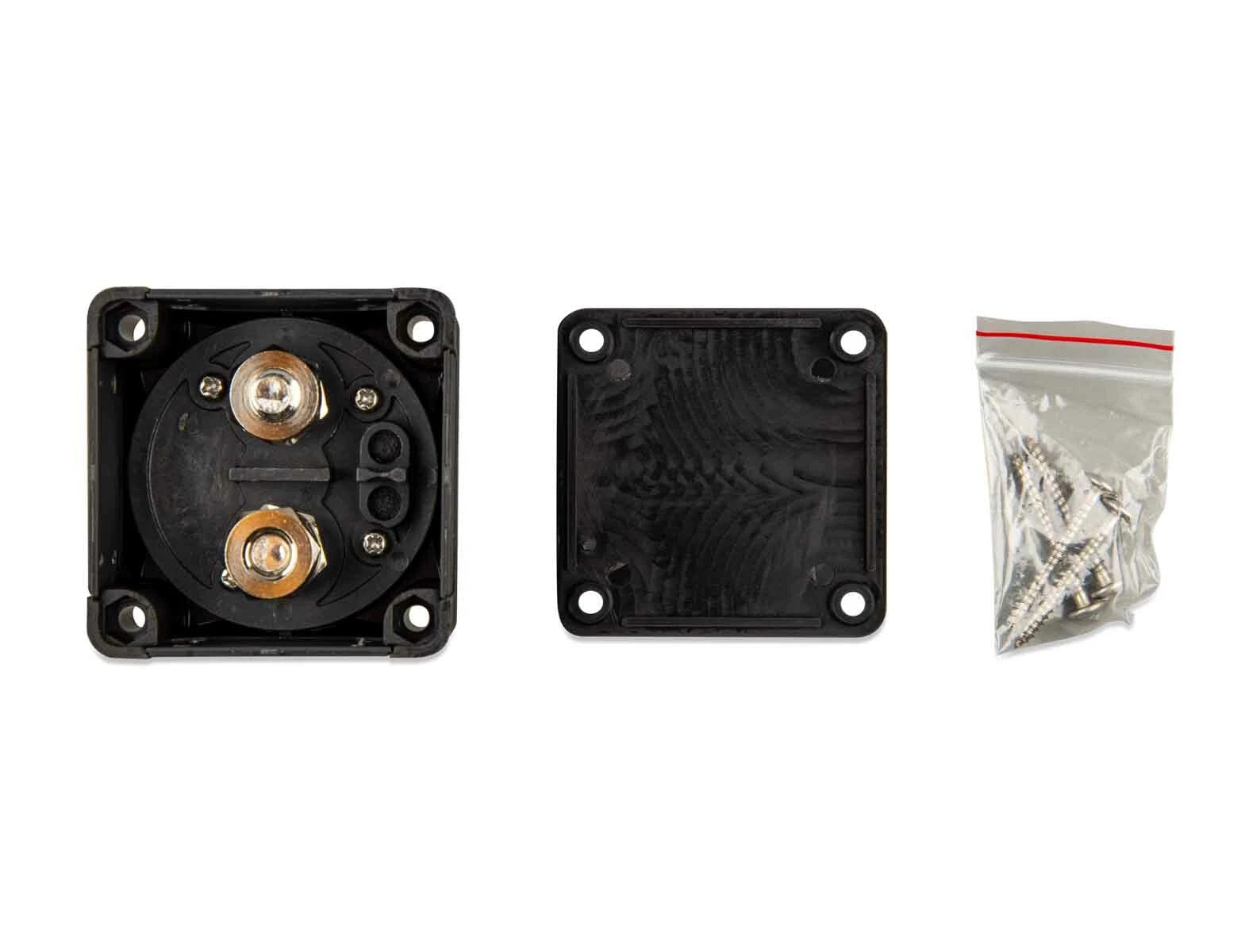

The Battery Switch can be either surface or panel mounted, providing flexibility during install.

The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

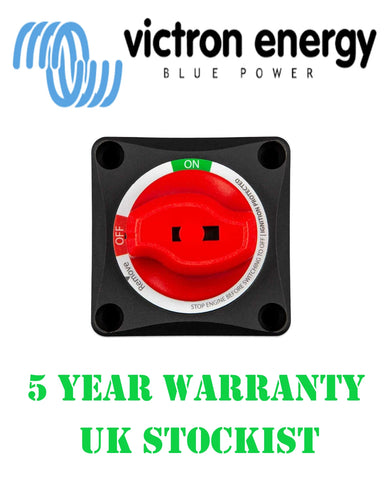

Victron Energy Battery Isolator Switch 275A

Safely disconnect your battery - ideal for preventing winter battery drain

This battery isolator switch can be used to isolate leisure batteries from DC loads or charge sources. When fitted, it can preserve battery charge in unattended systems e.g. in a caravan over winter. It can also be used to create a parallel connection to a secondary starter battery to jump-start in emergencies. It can be surface or panel mounted, and comes with 16 stickers to customise it for your application.

Suitable for 12v, 24v and 48v systems in campervans, caravans, motorhomes, boats and other off-grid environments.

Part no. VBS127010010

Technical Specifications:

Max. continuous current
275 A
One minute rating
455 A
Cranking rating
1250 A
Voltage Rating
48 V
Terminal material
Tin-plated copper
Hex nut material
Tin-plated copper
Terminal diameter
3/8 inch / 9.53 mm
Recommended torque
70 lbf-inch / 8 Nm
Base material
Glass fibre reinforced nylon
Weight
0.2 kg

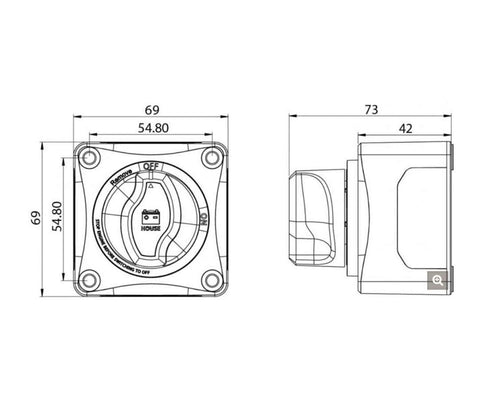

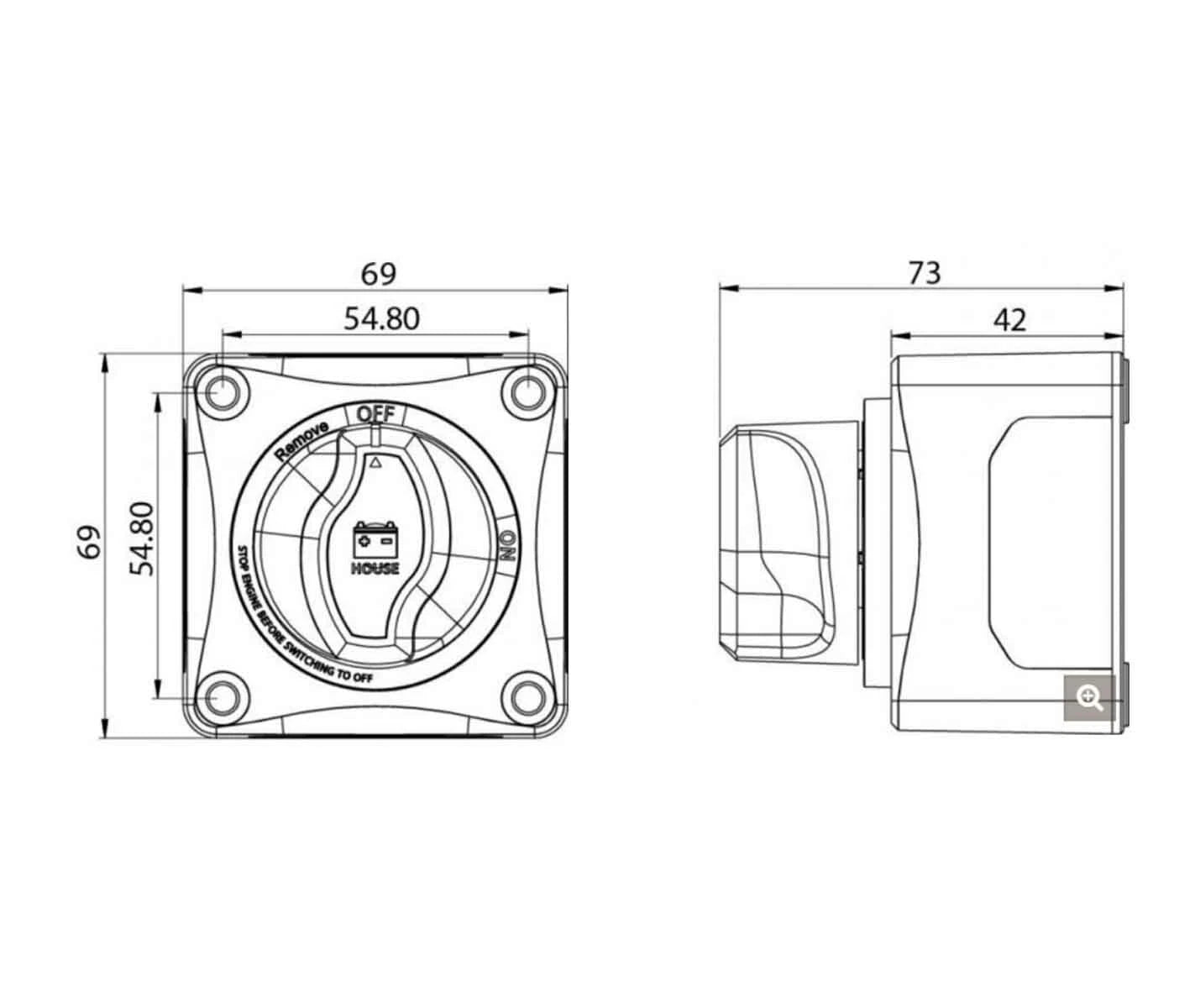

Dimensions (l x w x h)
69.5 x 76.3 x 69.5 mm
Ignition protected
ISO8846 / SAE J1171
